CT Scan to model in 8 hours

Discussion in 'Show off' started by Henry feldman, Oct 14, 2016.

  1. Henry feldman

    Henry feldman Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    969
    Likes Received:
    389

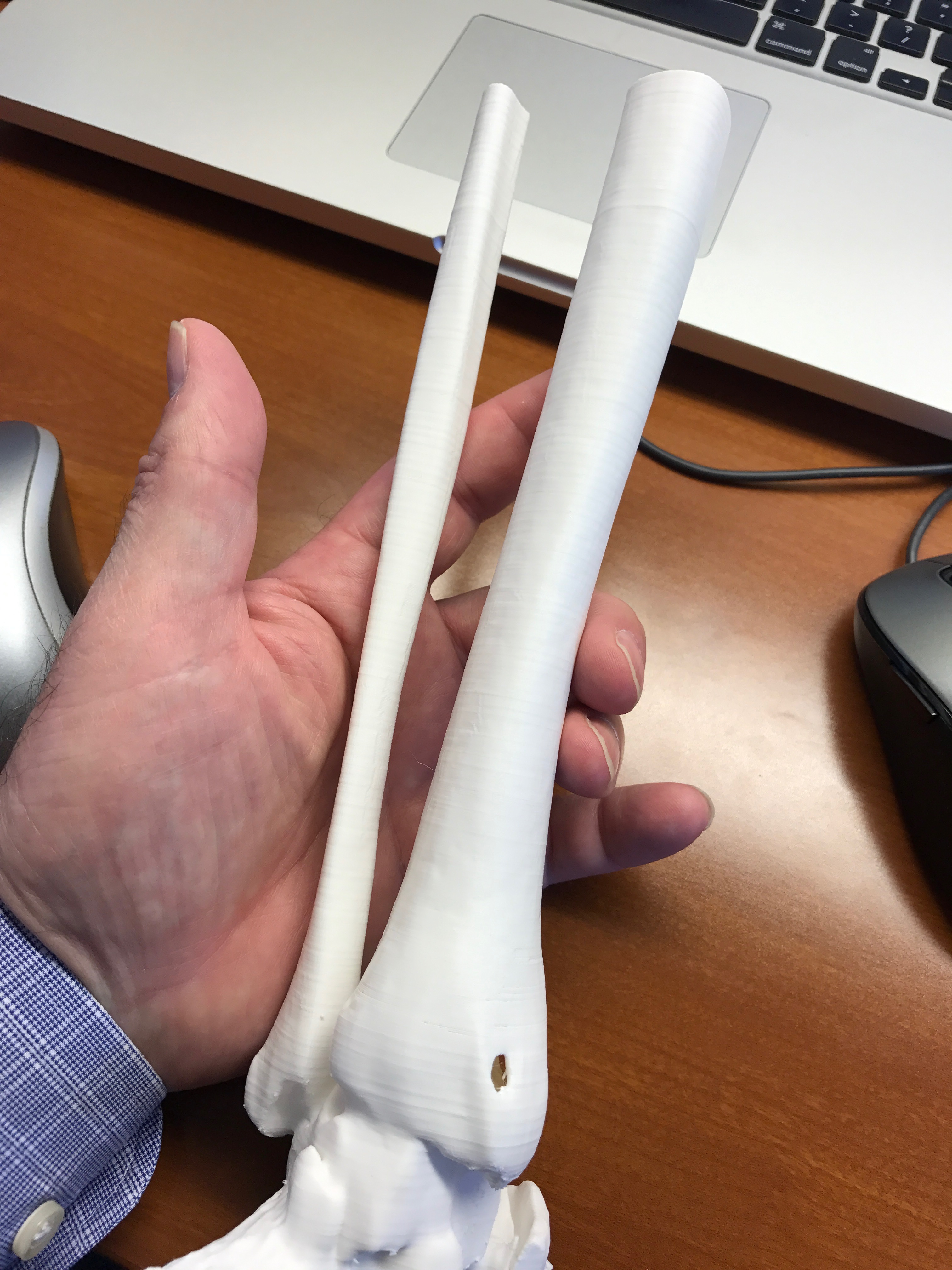

    So decided to see how fast I could go from a patient CT to a 3D printed model with high fidelity. Well we went from CT acquisition to printed in 8 hours! The quality is amazing, with extremely high detail. This is a CT of the tibia/fibula with a tiny bit of ankle thrown in.

    The workflow was a bit complex in that PACS systems (radiology image systems) do 3D reconstruction for visual use (who cares if the surface is manifold, etc) and so a significant repair in Emendo repaired thousands of intersecting triangles, etc. So step 1 in Osirix was a 3D surface reconstruction using bone windows, then export as polymesh. Then into meshmixer to do a plane cut to remove the bits of foot (they aren't well imaged in this CT) and make the model have a flat bottom. Then into Emendo, and finally S3D. Printed in PLA/PHA with 0.15mm layers at 200C with a ratio of 0.9; a few supports were used on the malleolus to support the tip. The surface is even smoother than it appears here.

    Note the hole you see is anatomic (that's where the blood vessels come through) and this is printed actual size (it's a $1m 3D scanner after all). Images were from a 64-detector GE Helical CT-scanner. The marrow cavity in the middle of the bone is fully visualized

    [​IMG]

  2. Tom De Bie

    Tom De Bie Well-Known Member

    Joined:
    May 7, 2016
    Messages:
    191
    Likes Received:
    33
    This is very cool!! Thanks for sharing ;)

  3. mike01hu

    mike01hu Well-Known Member

    Joined:
    Apr 22, 2014
    Messages:
    957
    Likes Received:
    166
    That's a big wow Henry!

  4. WestReak

    WestReak Member

    Joined:
    Dec 26, 2016
    Messages:
    3
    Likes Received:
    0
    Perfect work. What about scanner? Can this one be used?

  5. UlrichKliegis

    UlrichKliegis Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    187
    Likes Received:
    47
    Nice work, Henry. How were those 8 hours divided for the different steps, acquisition and processing vs. pure build time?

    The talus looks a bit atypically shaped. Fracture or artifact?

    Somewhen in the nineties, we made a mandible model (fracture, to be operated the next morning) in six and half hours, if I remember correctly from data in (the hospital was more or less next door) to model out, milled polyurethane hard foam. About one hour of data processing, the rest chopping off the block what did not look like a broken mandible...

    Cheers,

    Ulli

  6. UlrichKliegis

    UlrichKliegis Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    187
    Likes Received:
    47
    That scanner does not look like an x-ray CT (computed tomography) scanner. You can't look into a patient's body with that.
